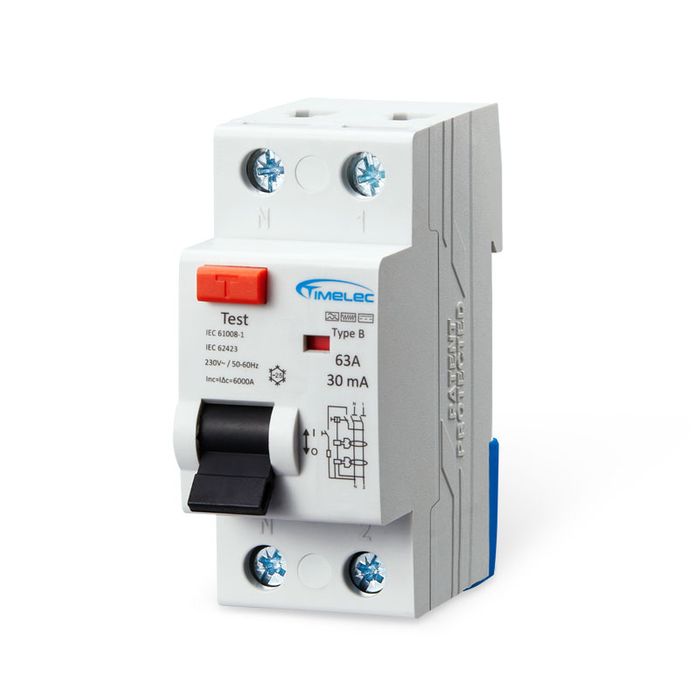

RCD Type B for loads with 3-phase rectifier
)
| Mode | Electromagnetic |
| Type | A, AC, G, S |
| Rated current (In) | 25A, 40A, 63A |
| Poles | 2P |
| Rated voltage (Ue) | 2P: 500V |
| Insulation voltage (Ui) | 500V |
| Rated frequency | 50/60Hz |
| Rated residual operating current (lΔn) | 30, 100, 300mA |
| Rated residual making and breaking capacity (lΔm) | 500A (In ≤ 40A), 630A (In ≤ 63A) |
| Short-circuit current lnc = lΔc | 10KA |
| Electrical and Mechanical life | 4000 |
| Fault current indicator | YES |
| Protection degree | IP20 |
| Ambient temperature | -5~+40°C and its average over a period of 24h does not exceed +35°C |
| Storage temperature | -25~ + 70°C |
| Terminal connertion type | Cable/U-type busbar/Pin -type busbar |
| Terminal size top/bottom for cable | 25mm2 |
| Tightening torque | 2.5N.m |
| Mounting | On DIN rail FN 60715 (35mm) by means of fast clip device |
| Connection | Top and bottom |
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
