01 Nov 2023

Application of DC meters in PV power generation.

Application of DC meters in PV power generation.

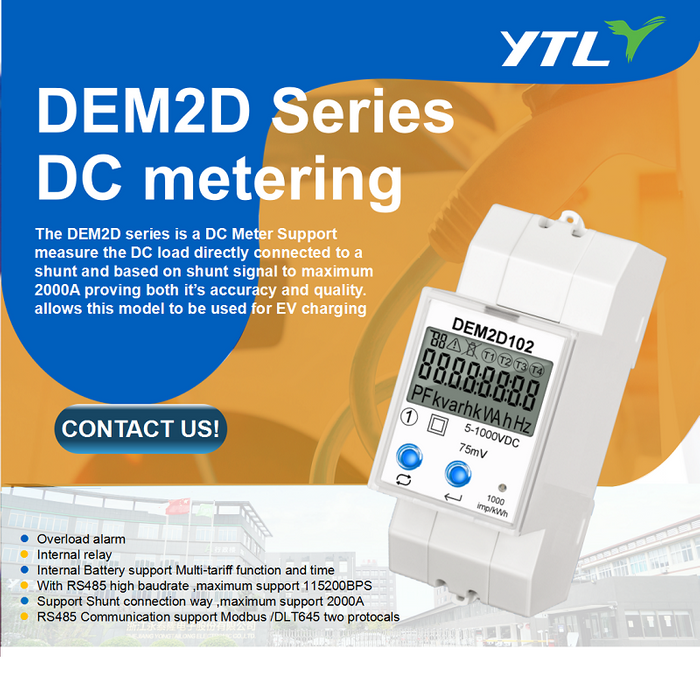

DEM2D series from YTL metering

PV power generation systems convert solar energy into electrical energy by utilizing solar panels. This type of energy is clean and does not rely on conventional energy sources. PV power generation systems comprise solar panels, controllers, inverters, DC power supplies, and energy meters. The use of DC meters in PV power generation is very significant. The following provides a detailed introduction to the use of DC meters in PV power generation.

  1. Types of DC meters.

In PV power generation systems, DC meters serve as the central component of energy measuring devices and are utilized for determining the DC energy produced by solar panels. Depending on the different application scenarios and measurement accuracy requirements, there are various types of DC meters available for selection.

  • Ordinary DC meters.

This type of energy meter is primarily used in situations that require general accuracy, such as household and vehicle solar panel energy monitoring. The measurement accuracy of this DC meter is relatively low, but it is affordable and has a wide range of applications.

  •  High-precision DC meters.

High-precision DC meters are suitable for situations that require high measurement accuracy, such as commercial and industrial solar panel systems. This type of DC meter has high measurement accuracy and stable performance, and it can accurately reflect the electrical energy output from solar panels.

  • Smart DC meters

Smart DC meters combine modern electronic and communication technology, and are capable of remote meter reading, data storage, and energy quality monitoring. This type of DC meter is suitable for situations that require high energy management, such as large-scale PV power plants and distributed energy systems.

    2.Application of DC Meters in PV Power Generation

  • Energy measurement

The basic function of a DC meter is to measure the DC energy output from solar panels. It can monitor and record the solar panel's current, voltage, and power output in real-time and convert it into electrical energy for measurement. These data are of great significance for understanding the performance of PV power generation systems, optimizing system configuration, and improving energy efficiency.

  • (2) Data analysis and optimization.

DC meters can collect and record a large amount of energy data, including current, voltage, power, and energy consumption. By analyzing and processing this data, it is possible to understand the working conditions of the solar panel, its power generation efficiency, and any potential problems. This data can also be used to optimize PV power generation systems, thereby improving their efficiency and reliability.

  • Fault diagnosis and maintenance

DC meters can monitor the working conditions of solar panels in real time. When abnormal situations occur, it can alert and record fault information in a timely manner. This helps to quickly identify and resolve issues in PV power generation systems, thus ensuring stability and reliability. In addition, by analyzing energy data, it is possible to determine the extent of wear on solar panels, reminding users to replace them promptly to ensure optimal system performance and longevity.

  • Grid operation and scheduling

For grid-connected PV power generation systems, DC meters can achieve bi-directional communication and coordinated control with the power grid. They can upload the power generation data of solar panels to the power grid dispatch center, enabling the dispatchers to understand the operation of PV power generation systems and schedule the power generation of solar panels according to grid demand. This helps achieve the coordinated operation of PV power generation systems and the power grid, improving the stability and reliability of the power system.

   3.Advantages of DC meters in PV Power Generation

  • This is already grammatically correct. No changes needed.

DC meters can accurately measure energy usage and perform data analysis functions for both residential solar panels and large-scale PV power plants. It can choose different types and measurement accuracies according to different application scenarios, meeting the needs of PV power generation systems of various sizes.

  • Improving energy efficiency and management level.

DC meters can monitor the operational status of PV power generation systems in real-time, helping users understand the performance and usage of solar panels. By analyzing and optimizing data, it is possible to further improve the energy efficiency and management level of PV power generation systems.

  • Reducing operating costs and the maintenance workload.

DC meters can achieve fault diagnosis and maintenance functions, quickly discovering and solving problems in PV power generation systems. This helps to reduce the operating costs and maintenance workload of the system, improving its reliability and lifespan.

DC meters play an important role in PV power generation. Its application helps to improve energy efficiency, reduce operating costs, optimize resource allocation, and improve management levels. Therefore, selecting an appropriate DC meter and configuring it reasonably is crucial for maintaining the stability and reliability of PV power generation systems.
